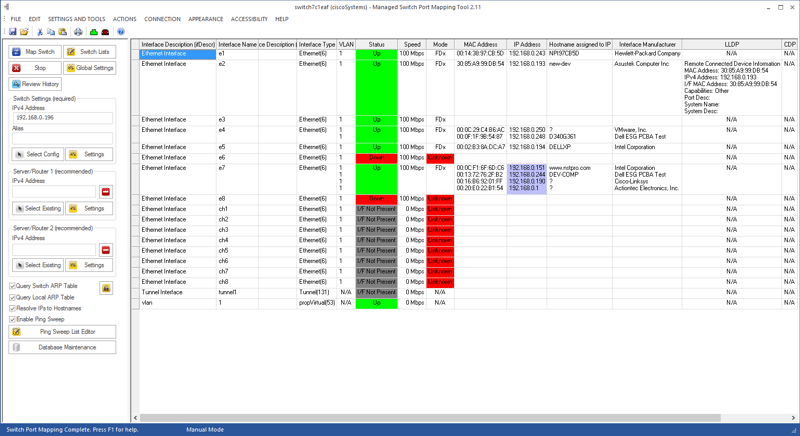

Managed Switch Port Mapping Tool - Version 2.23 The Managed Switch Port Mapping tool communicates witha managed ethernet switch using SNMPv1/v2c and maps thephysical port connections to MAC and IP addresses ofthe attached devices.Capable of mapping many different brands and models ofmanaged switches. Saves technicians time mapping out the physical layoutof your network by helping identify network devicesattached to the physical switch ports. Shows multiple downstream devices connected by hubs orother switches. Shows VLAN assignment, port status, speed, duplex,bytes in/out, connected device interface manufacturer,interface bandwidth utilization and more. Shows Spanning Tree Protocol status and root information. Reports Microsoft and VMWare virtual operating systemsattached to ports. Spreadsheet format results can be printed in color andsearched for text strings. Export results to XML or tab delimited text. The XMLfile can be directly opened by Microsoft ExcelXP/2003/2007 or OpenOffice Calc.Results can be saved and reloaded for later review. Switch and device 'configurations' including IPs andcommunity names are automatically saved in an SQLitedatabase and can be loaded for rapid change betweenmultiple switches. No need to re-enter switch information.
